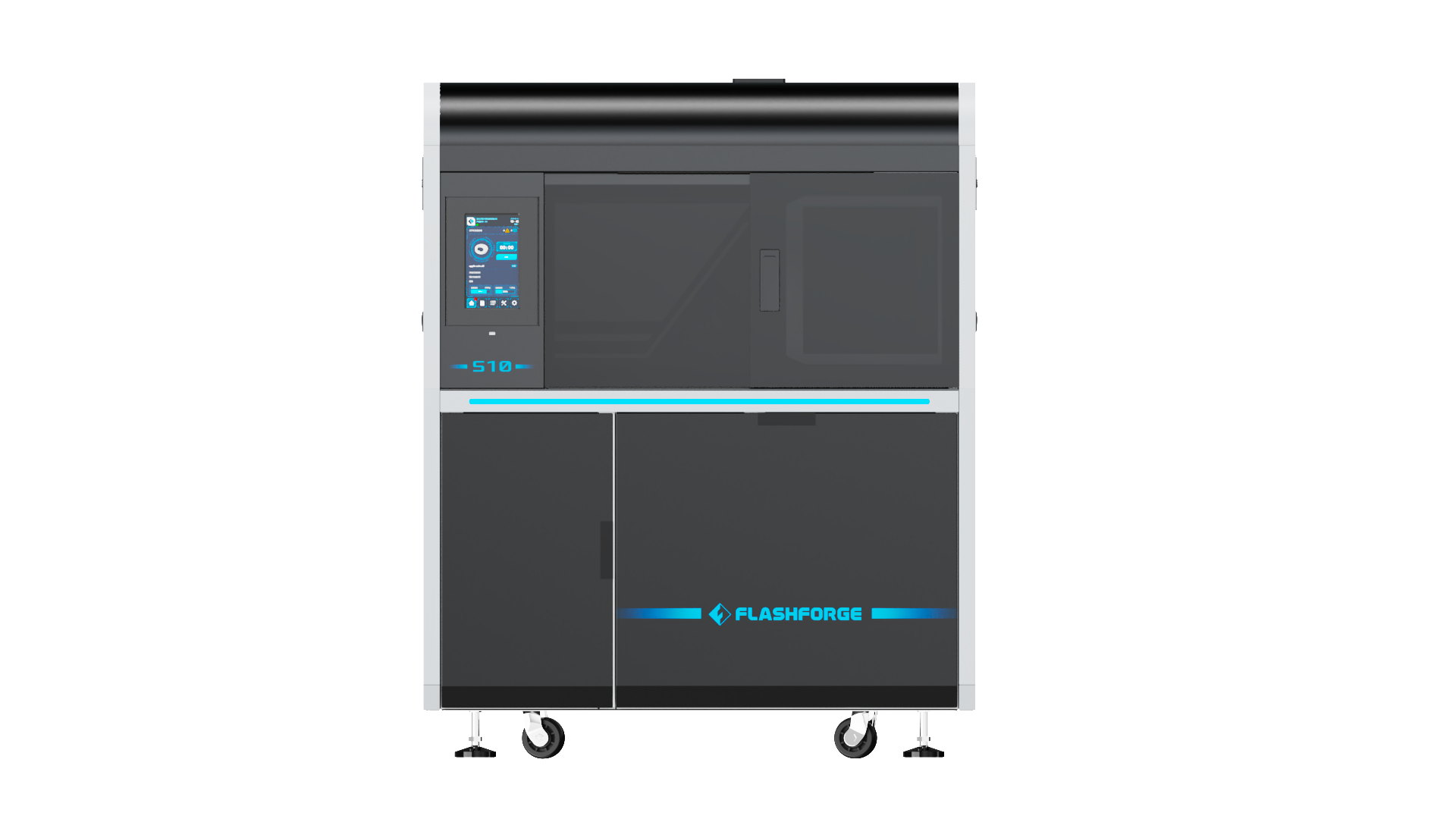

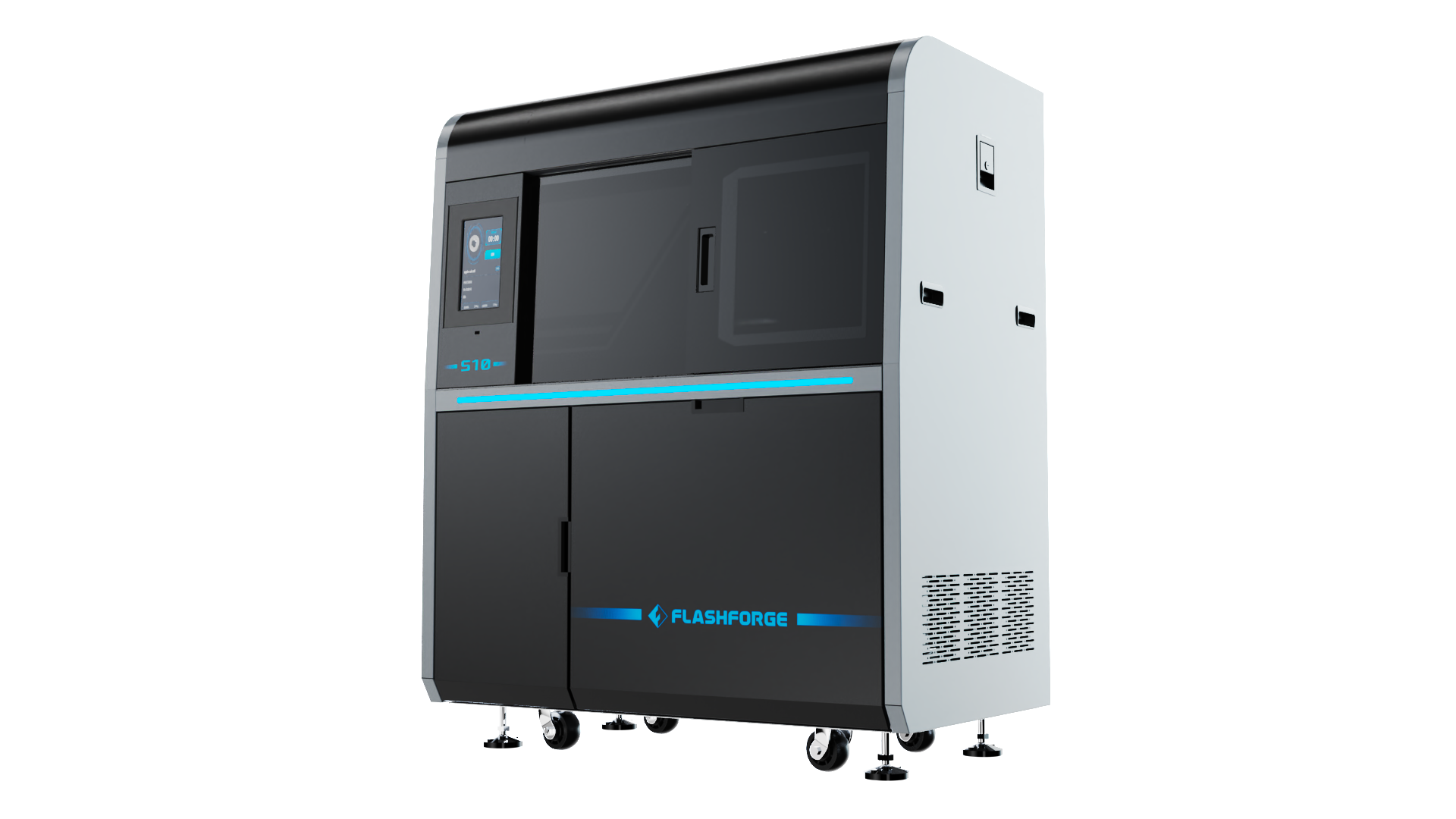

WaxJet 510
WaxJet 3D Printing Precision Perfected Born for K-Gold Jewelry Casting
Product upgrade comparison
WaxJet 510
Printing Mode
XHD Mode: 2900*2900*1700 DPI
Layer Thickness
15μm
Printing Material
Red Wax + White Wax
Material Specifications
1.50kg/bottle + 1.60kg/bottle
Prototype Verification High-precision Model Production
Brand New Precision
2900*2900*1700 DPI
sets a new standard for precision in jewelry 3D printing.
15μm per layer
represents much smoother, clearer details, less post-processing.
lower costs
A mold created using a wax pattern that requires less polishing translates to lower cost.
Technology and Material
Capacity Upgrade
10 %
material costs reduced by
65 %
Yield increased by over
Moldless Manufacturing
Reduce mold-making and retouching costs, cutting time to market by 2/3.
WaxJetPrint
WaxJetPrint is an all-in-one software that simplifies digital jewelry file slicing. It provides user-friendly composing and printing procedures for beginners.
User-Friendly Workflow
24/7 Printing,
Unattended & Continuous

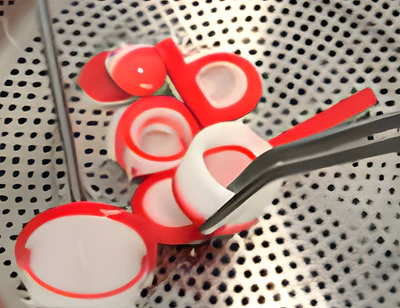

Enhanced Wax, Ideal
for Complex Designs

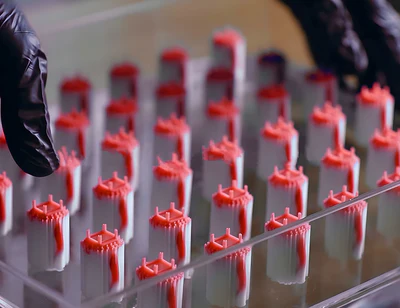

Contact-Free Support Removal，
Easier Post-Processing
Technical Parameter
| Printing Technology | MultiJet Printing (MJP) |
|---|---|
| Build VolumeBuild Volume | 289*208*100mm |
| Printing Mode | XHD:2900*2900*1700 DPl; layer thickness:15um |
| Dimensional Accuracy | ±0.04mm/20mm |
| Power supply | AC220-240v,50hz,4kw |
| Equipment Dimensions | 1352*775*1600mm |
| Net Weight | 480kg |
| Gross Weight | 630kg |
